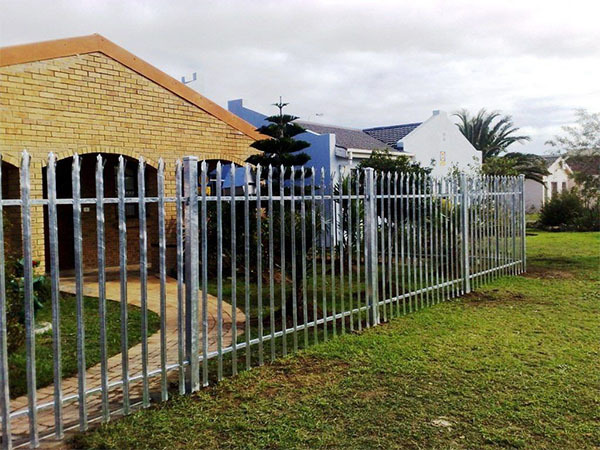

Palisade Fence, with its classic “D” or “W” profile pales and horizontal rails, offers customizable height options, perfect for securing properties.
Contact Us for Shipping, delivery, and payments information.
Products Category
Tag list
- 产品描述
-
Product Introduction
Palisade Fencing is suitable for a variety of outdoor locations where a medium level of security is required. Designed for permanent installation, this Palisade Fencing is extremely robust and resilient and is often a popular choice of security fencing for industrial and commercial buildings, as well as public areas.
Product Specification
Height
Width
Pale Thickness
Qty:Pale
Cross Rails
Square post
I Post
1.8m
2.75m
2/2.5/3mm
17pcs
40×40×4mm
50×50×6mm60*60mm
80*80mm
100*100mm100×55mm
2.1m
2.75m
2/2.5/3mm
17pcs
2.4m
2.75m
2/2.5/3mm
17pcs
3.0m
2.75m
2/2.5/3/3.5mm
17pcs
W section Pale:62mm
1.8m
2.75m
1.5/2/2.5mm
17pcs
40×40×4mm
50×50×6mm60*60mm
80*80mm
100*100mm100×55mm
2.1m
2.75m
1.5/2/2.5mm
17pcs
2.4m
2.75m
1.5/2/2.5mm
17pcs
3.0m
2.75m
1.5/2/2.5mm
17pcs
D Pale section:65mm
1.8m
2.75m
1.5/2/2.5/3mm
17pcs
40×40×4mm
50×50×5mm60×60mm
80x80mm
100x100mm100×55mm
2.1m
2.75m
1.5/2/2.5/3mm
17pcs
2.4m
2.75m
1.5/2/2.5/3mm
17pcs
3.0m
2.75m
1.5/2/2.5/3mm
17pcs

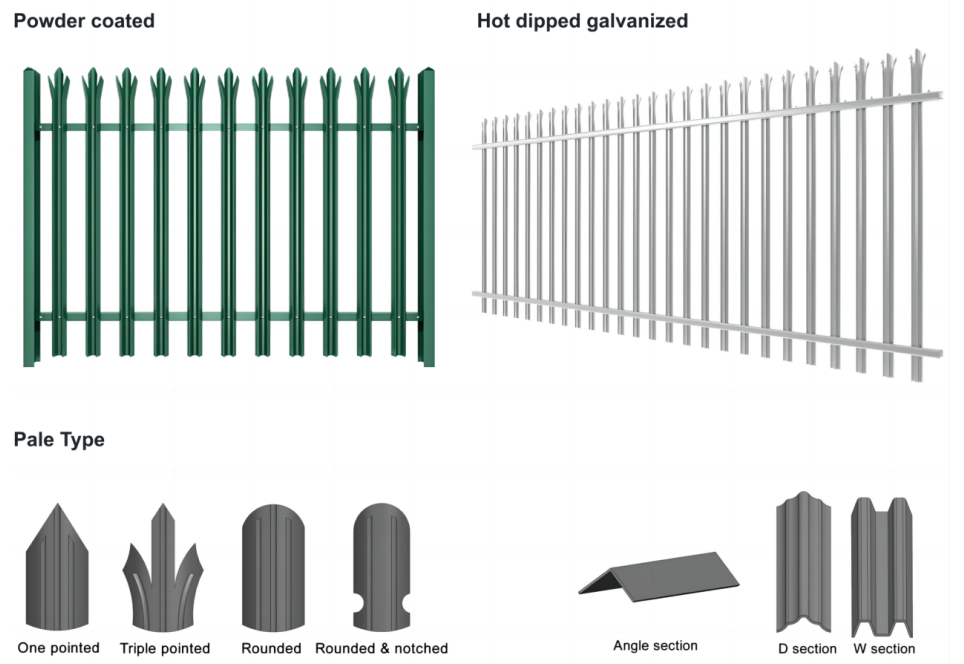

Surface treatment: Galvanized or galvanized then powder coating finished
Pale head:Can be do single pointed, triple pointed, square tops, round and notched tops or rounded only.

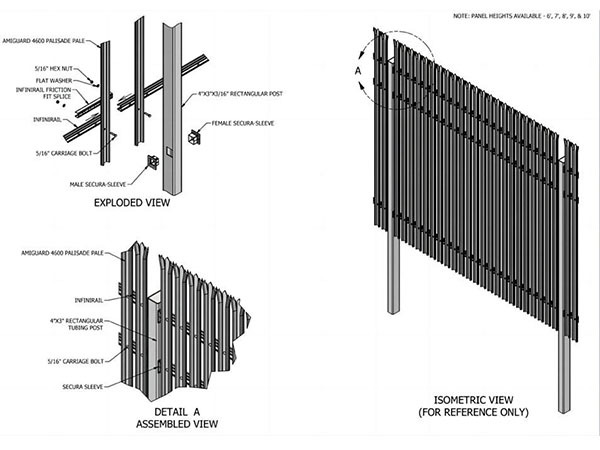

Installation
Step 1: For base plates screwed onto concrete.
Step 2:Slide the link plates through the post slots. Angled versions are used on internal and external corners and end posts.
Step 3: Secure the rails to the link plates using M12 bolts, and attach the top rail’s anti-grab tags.
Step 4: Attach the pales to the rails with M8 bolts, using pre-drilled holes.

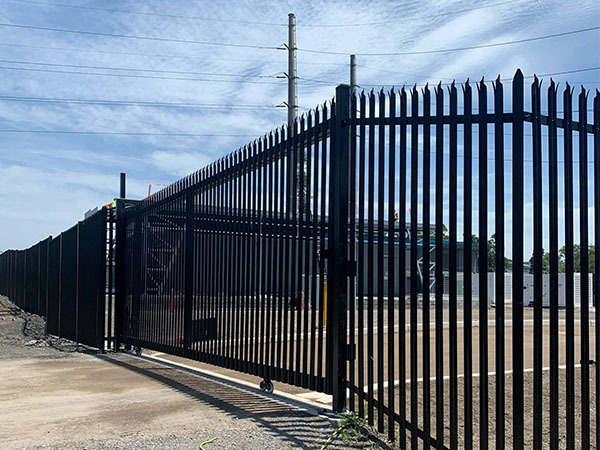

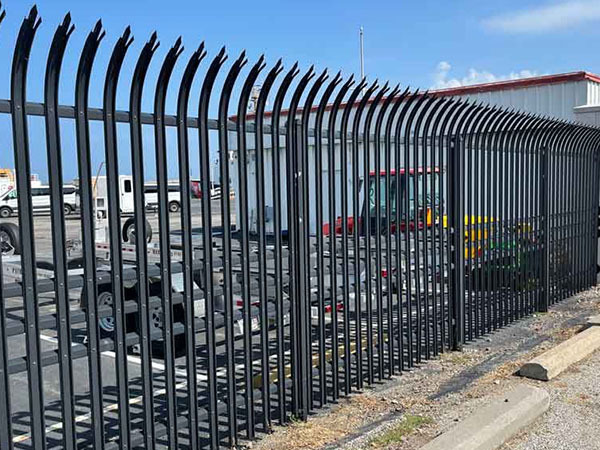

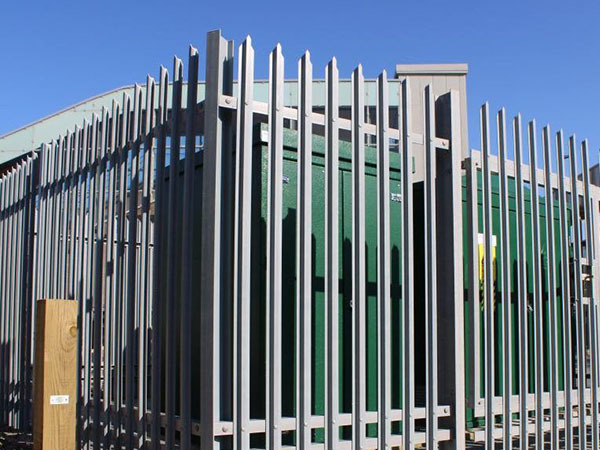

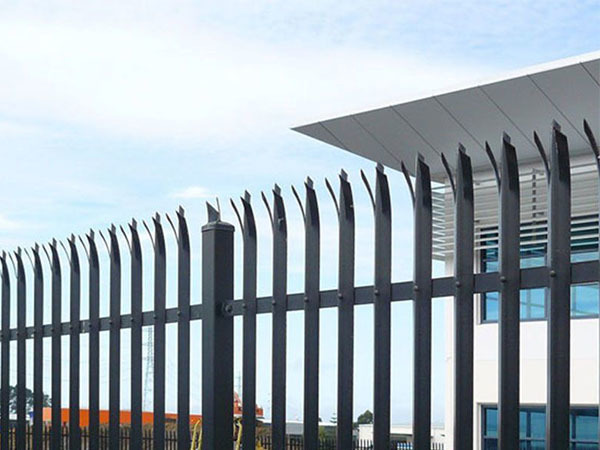

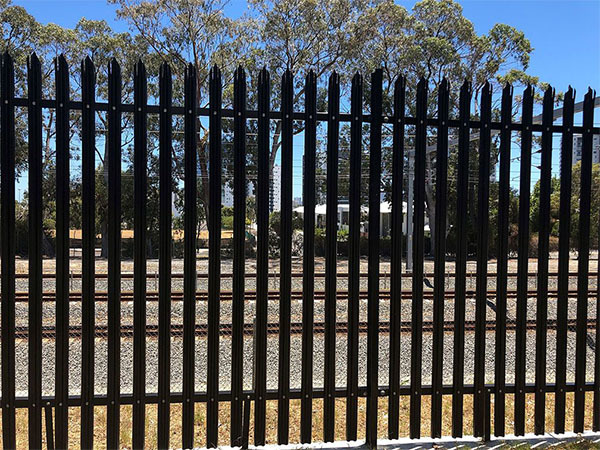

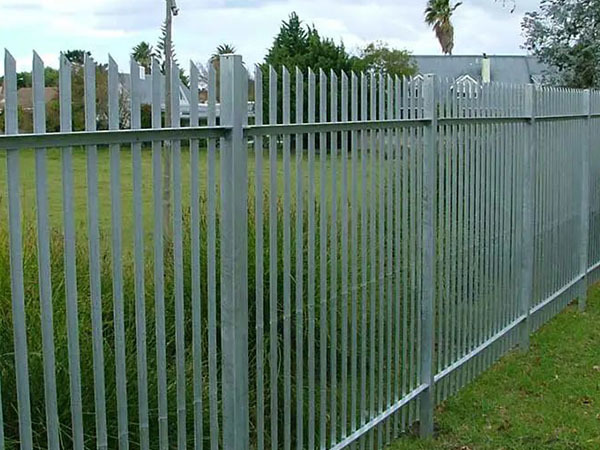

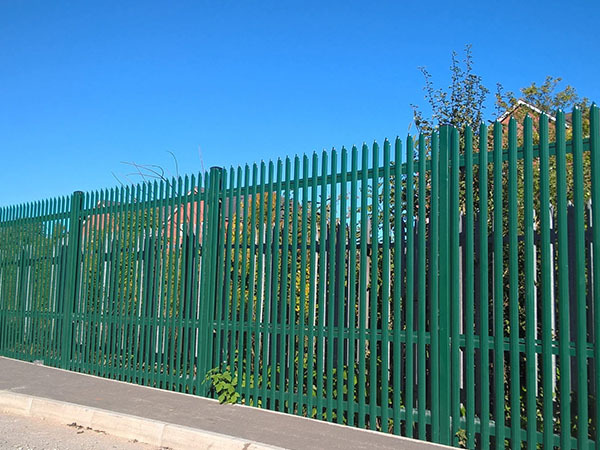

Applications
Utilities Infrastructure
Private area
Factory
Residential Complexes
Park
Railroads
Garden
Quality Control
After finished the production process and before shipping, our quality inspector will test the finished goods. Our inspector has many years experience, once the unsuitable goods will be re-produced immediately.

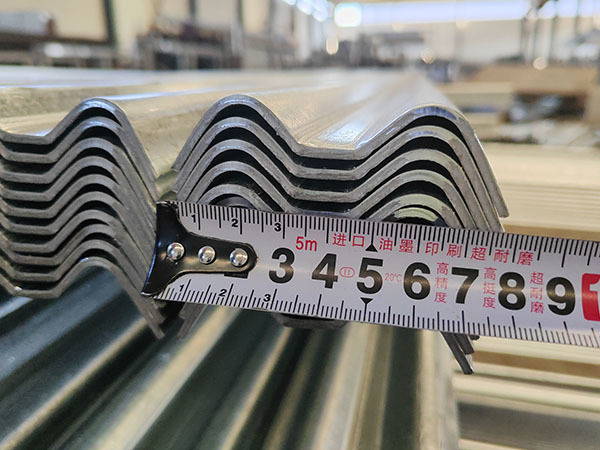

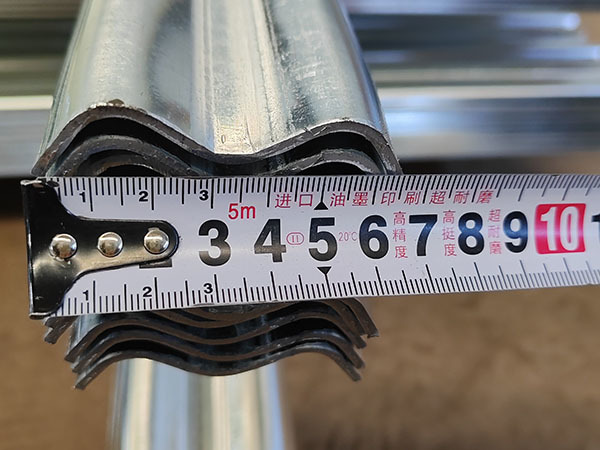

W Pale Width Test
W Pale Width Test

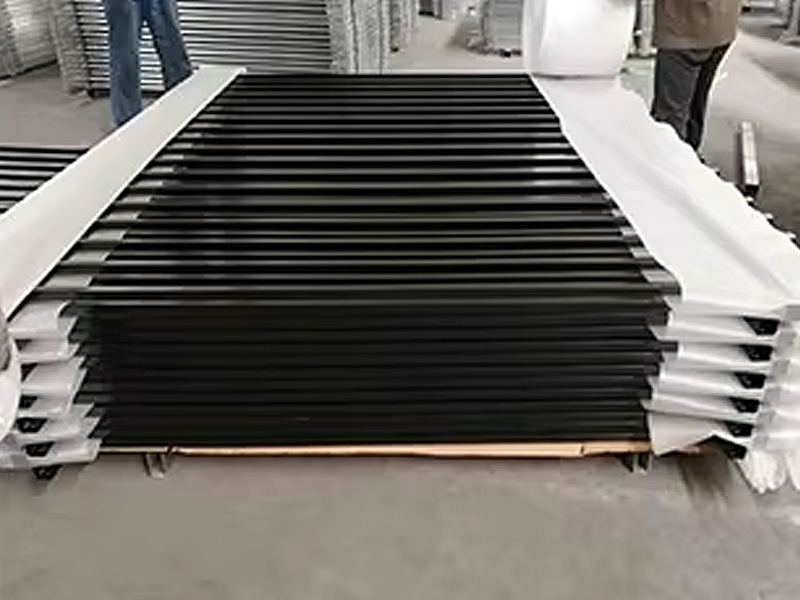

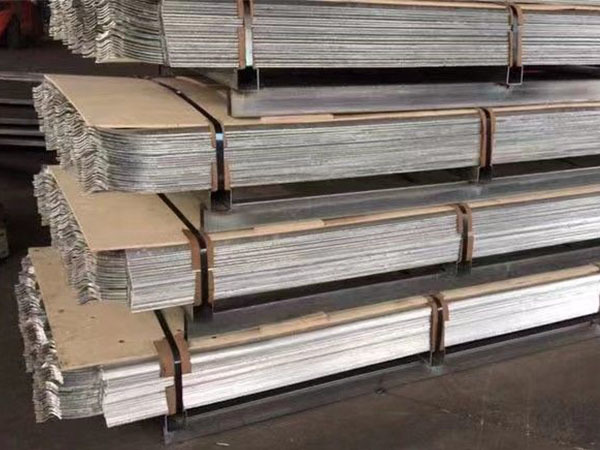

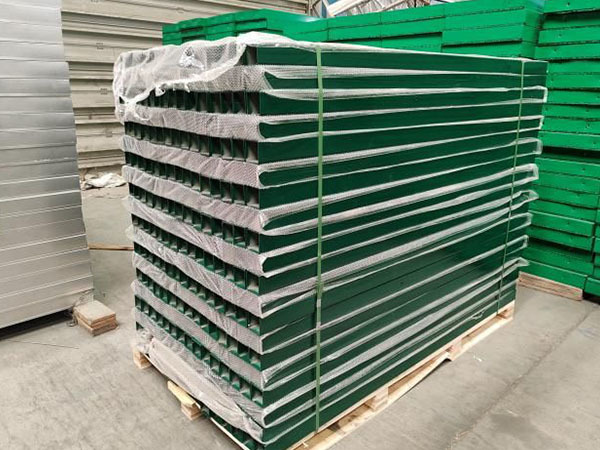

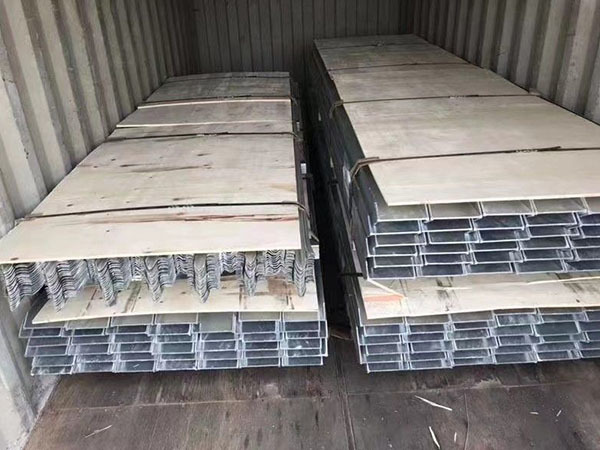

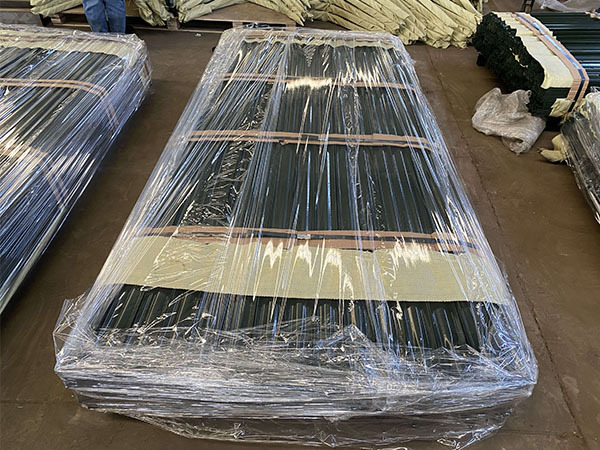

Package and shipping
The bulk packing will take a little longer because it needs to be assembled, but because it is compact, shipping is far more affordable.

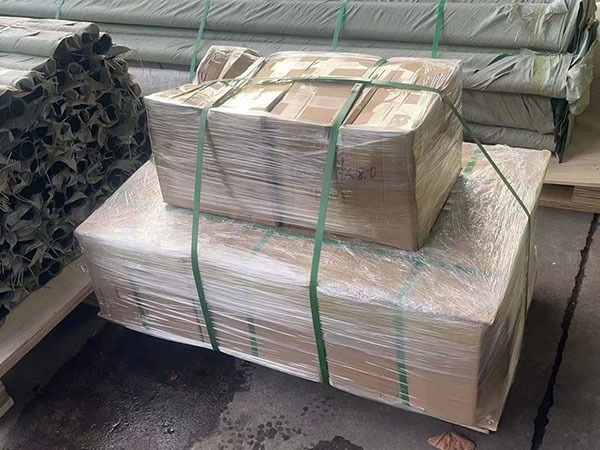

Packaged on plastic film+wooden/metal pallet.
Fence post: plastic film + metal/wooden pallet
Fence accessories: plastic bag + carton box (clips & screws)
Any special requirement for package, please feel free to contact us.
Land transportation, sea transportation, air transportation, express delivery.
We will recommend the most favorable transportation method for you based on customer needs and the size of the goods
Our Company
Anping Ocean-Wire Mesh Making Co., Ltd. is a professional (lS0 9001:2008 certificated) manufacturer and exporter of series wire mesh products. Our company established in 2009 and located in Hi-Tech Industrial Zone of Anping which is well known as Wire Mesh Land of China, enjoys convenient transport to Beijing, Capital City of China, and near Tianjin, Qingdao the most two important seaport in North China.
Our company has advanced production equipment, first-class technology and complete quality management system. Wall Spikes got Patent Certificate issued by State intellectual Property Office of the people's republic of China on October 28, 2015. Our products won seven national patent certificates. Ocean wire brand has been recognized by our customers over the years, by virtue of advanced production technology, strict management and strong development of innovative strength, won the trust and appreciation of old and new customers all over the world.
Our Certifications
We have passed the certificate of ISO9001:2008, ISO14001:2004, health and safety management system GB/T28001:2001.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
