| Material | 1.Galfan galvanized wire 2.Hot dip galvanized 3.Pvc coated galvanized |
| Wire diameter | 2.0,2.2,2.4,2.7m3.0,3.5,4mm |
| Mesh hole | 60*80mm 80*100mm 100*120mm or customized |
| Selvding wire | 3-4mm |
| Lacing wire | Normal 2.0-2.2mm |

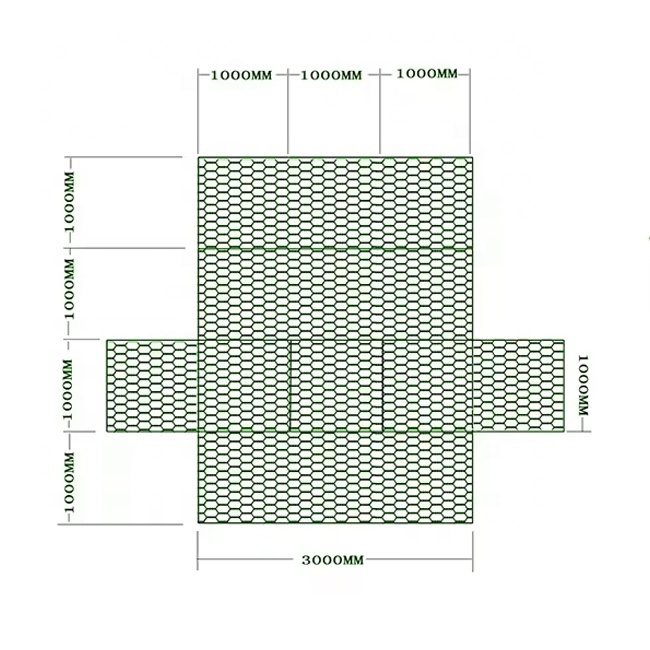

| basket size | 2*1*0.5,2*1*1,3*1*1,4*1*2,4*2*0.23,6*2*0.3m ,etc |
Woven Gabion Basket
Woven Gabion Basket, made of galvanized/galfan/PVC - coated wires, has a robust & flexible structure. Ideal for erosion control and retaining walls.
Contact Us for Shipping, delivery, and payments information.
Products Category
Tag list
- 产品描述
-
Product Specifications
Material:Galfan Wire,Galvanized Wire,PVC Coated Wire
Best Quality,Anti-Rust,High Strength,Good Apperance,Longer Service Life
Our Advantage
Item
Diameter (mm)
Zinc coating (gm2)
Tensile strength (Mpa)
Mesh Wire
2.7mm
240g-300g/m2
445-700
Selvedge Wire
3.4mm
240g-300g/m2
445-700
Lacing Wire
2.2mm
240g-300g/m2
445-700

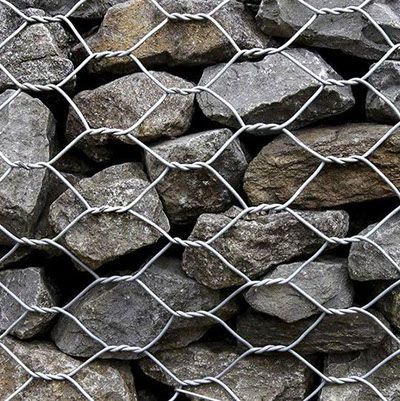

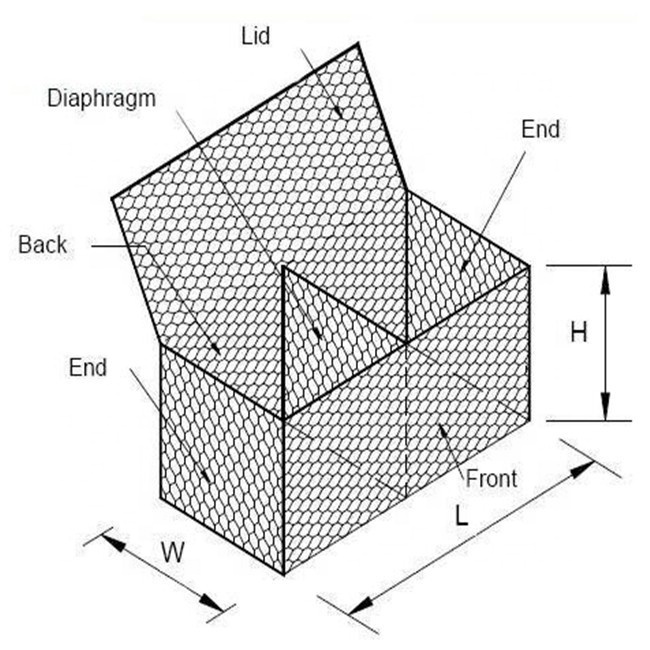

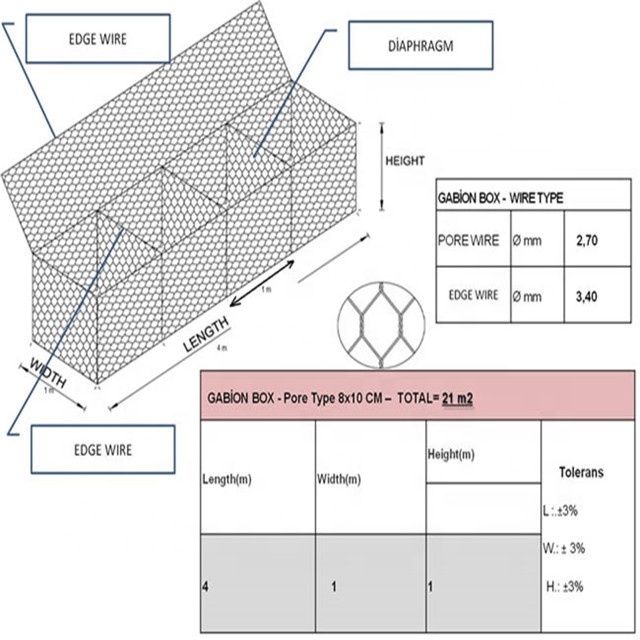

Gabion basket also named gabion box, is weaved by corrosion resistance, high strength and good ductility galvanized wire or PVC coating wire through mechanical. Wire's material is zinc-5% aluminum alloy (galfan), low carbon steel, stainless steel or iron.

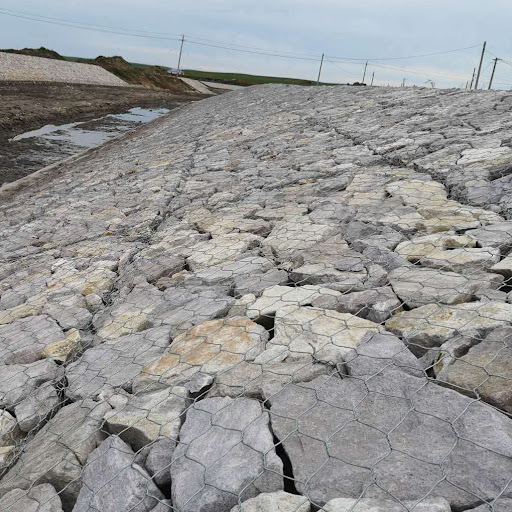

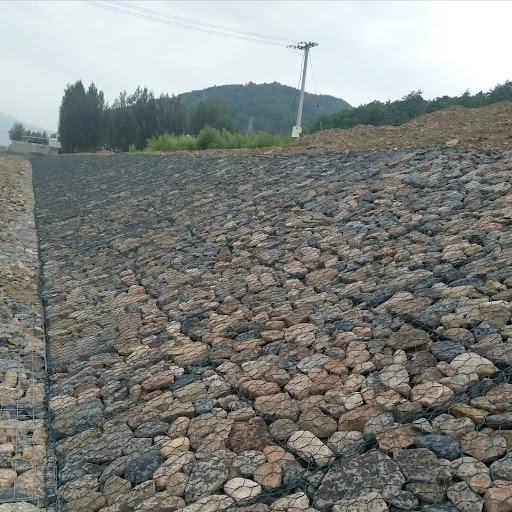

Gabion mattress is similar to gabion basket. But gabion mattress's height is lower than gabion basket, structure is flat and big.

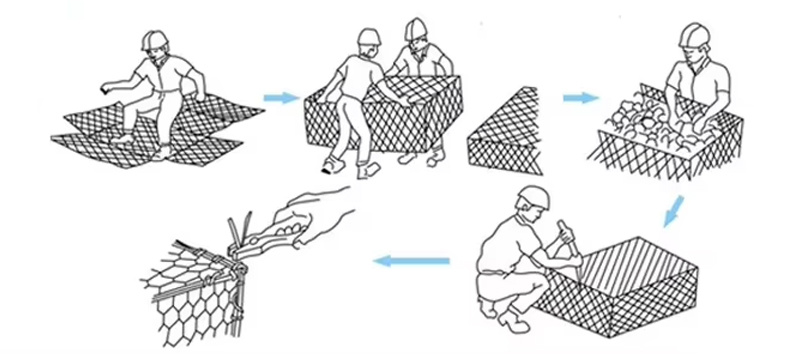

Gabion basket and gabion mattress are stone containers, uniformly partitioned into internal cells, interconnected with other containers and filled with stone at site to form flexible, permeable, monolithic structures to control and guide water or flood, protect dam or seawall, or used as retaining walls, channel lining and other applications.
Applications
Application of Hexagonal Gabion:
★ Control and guide rivers and floods
★ Rock fall protection

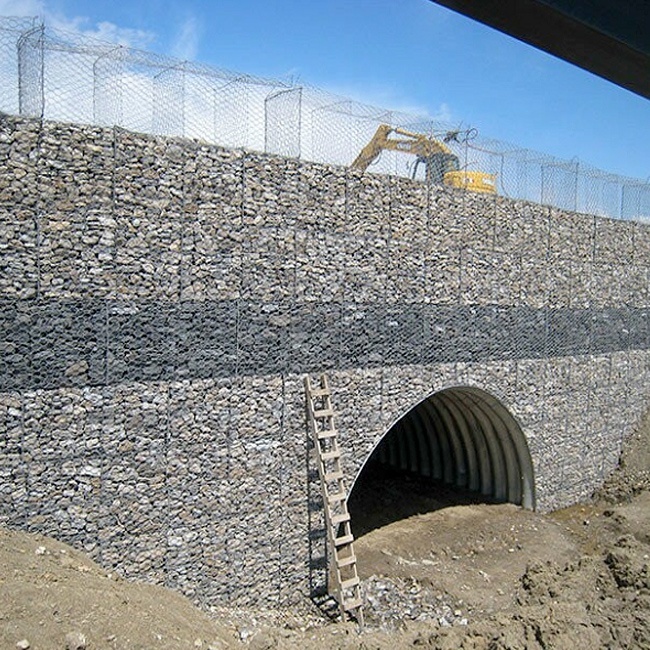

★ Bridge protection
★ Coastal Defense Engineering

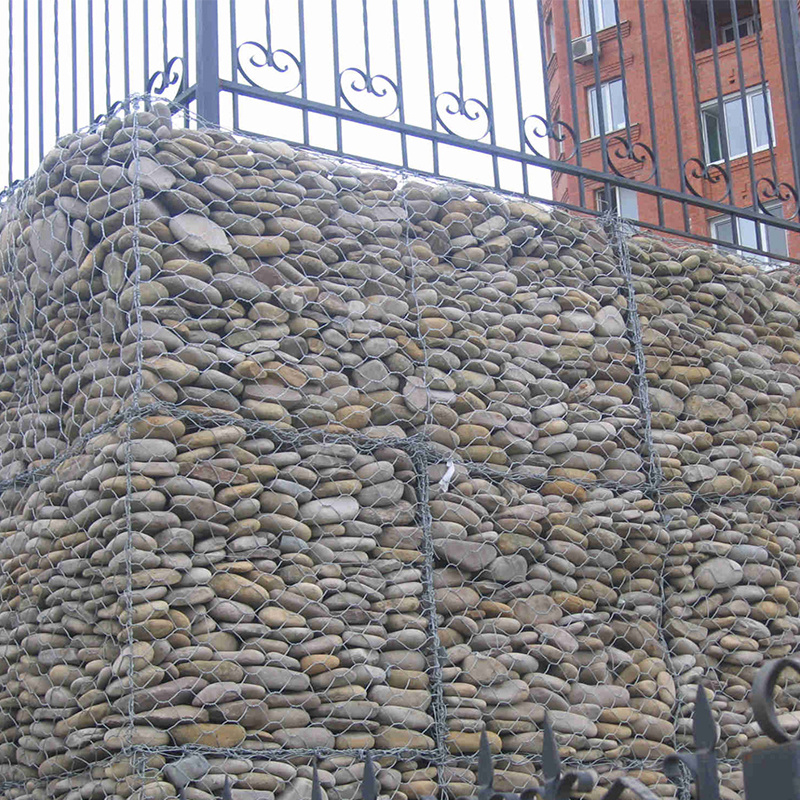

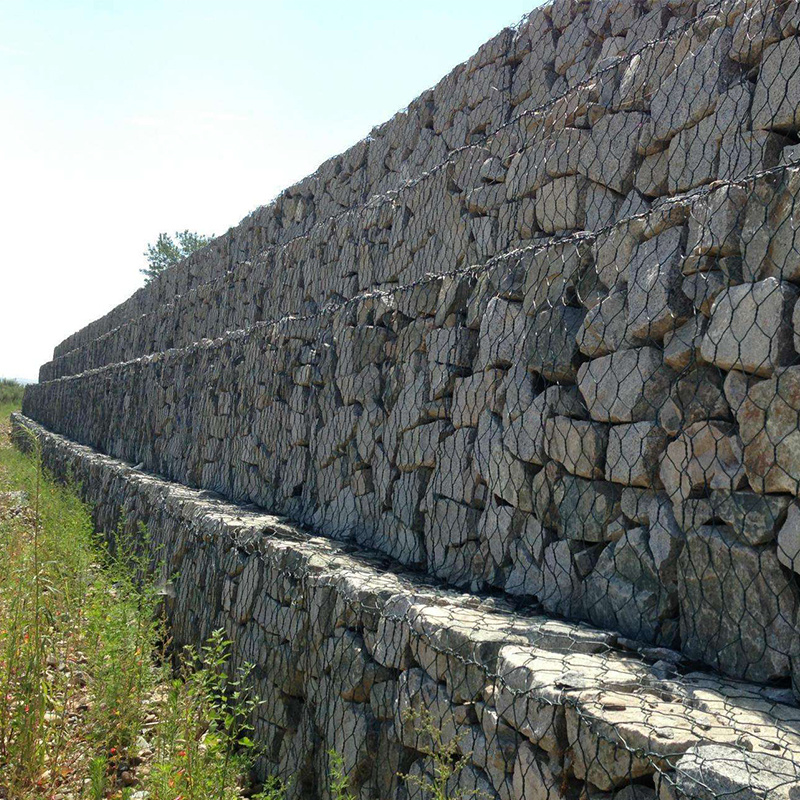

★ Retaining wall
★ Flood discharge and diversion dams
★ Preventing soil erosion
★ Soil fixation structure
★ Port Engineering
★ Road protection
Our Company
Anping Ocean-Wire Mesh Making Co., Ltd. is a professional (lS0 9001:2008 certificated) manufacturer and exporter of series wire mesh products. Our company established in 2009 and located in Hi-Tech Industrial Zone of Anping which is well known as Wire Mesh Land of China, enjoys convenient transport to Beijing, Capital City of China, and near Tianjin, Qingdao the most two important seaport in North China.
Our company has advanced production equipment, first-class technology and complete quality management system. Wall Spikes got Patent Certificate issued by State intellectual Property Office of the people's republic of China on October 28, 2015. Our products won seven national patent certificates. Ocean wire brand has been recognized by our customers over the years, by virtue of advanced production technology, strict management and strong development of innovative strength, won the trust and appreciation of old and new customers all over the world.
Our Certifications
We have passed the certificate of ISO9001:2008, ISO14001:2004, health and safety management system GB/T28001:2001.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
